CoPilot 128 Hi-Resolution Printing System

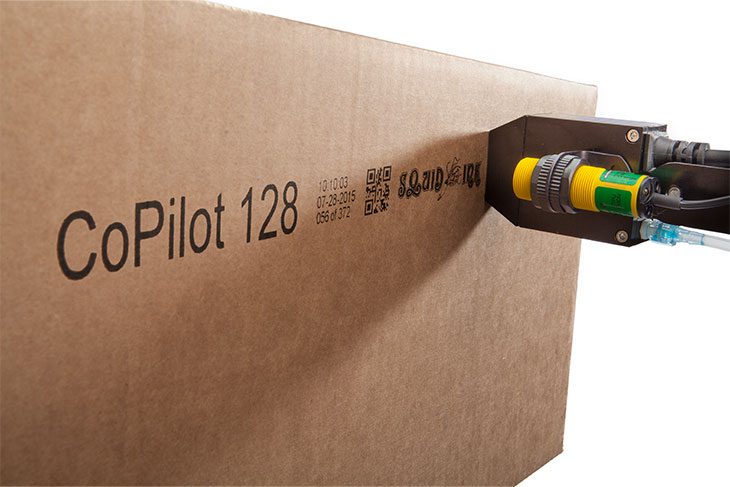

The CoPilot 128 is a versatile industrial printer capable of printing high-resolution lot codes, barcodes, logos, and product information. It utilizes Piezo impulse printhead technology to achieve a print height of up to 0.7″ (1.8 cm) per printhead on various substrates, including plastics, metals, glass, and corrugate cases.
Key Features & Design
- High Resolution: Features a vertical resolution of 185 dpi and horizontal resolution of 205 dpi, producing razor-sharp graphics and scannable barcodes.
- Substrate Versatility: Works on porous and non-porous surfaces such as coated cartons, shrink wrap, and PVC pipe.
- Rugged Construction: Built with an industrial-strength printhead and a durable 4.3″ full-color touchscreen designed to withstand harsh industrial environments.
- Advanced Software: Uses Orion™ PC Software for message creation, supporting standard 2D barcodes, multiple fonts, and 4GB of storage for over 1,000 messages.
- Ink Options: Supports oil-based, solvent-based, UV-curable, and pigmented inks for dark-colored objects.
Operational Efficiency
- High Speed: Standard print speeds reach up to 135 feet/min, with an optional high-speed printhead capable of 200 feet/min.
- Reduced Maintenance: The PZ-1000 ink for porous substrates is designed for ultra-low maintenance, eliminating the need for auto-priming functions.
- Flexible Connectivity: Messages can be transferred via USB, Ethernet, or wireless networks. For larger operations, an unlimited number of systems can be controlled through one central PC.
- Maximized Uptime: The system uses a generous 500ml cartridge or bag ink system, which reduces the frequency of ink replacements and keeps production lines running.
Cost Benefits
- Low Cost of Ownership: Designed as an affordable solution for ink jet coding needs without sacrificing industrial quality.
- Efficient Ink Utilization: Better ink utilization compared to competitive systems, particularly when using specialized inks like PZ-1000.
- Improved ROI: By reducing downtime through its rugged design and high-volume ink system, the CoPilot 128 helps maximize return on investment.
