CoPilot 256 Hi-Resolution Printing System

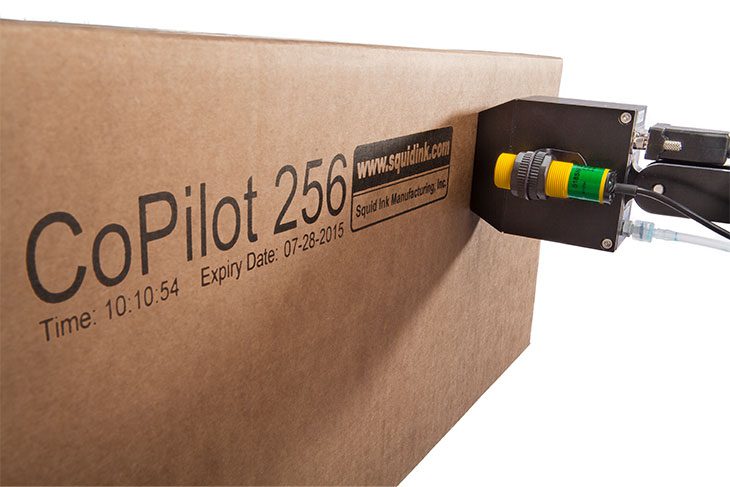

The CoPilot 256 is a world-class, industrial hi-resolution ink jet printing system designed to print superior quality characters on both porous and non-porous surfaces. It serves as an integral part of day-to-day packaging operations, capable of printing on both sides of a substrate in a single pass.
Key Features & Design
The system balances advanced printing technology with a rugged build for industrial environments.
- High-Resolution Printing: Utilizes piezo impulse printhead technology to print at 185 dpi (vertical) and 205 dpi (horizontal), suitable for razor-sharp graphics, text, and scannable bar codes.
- Print Dimensions: Offers up to 1.4″ of print height per head, with a total capability of 2.8″.
- Versatile Ink Library: Runs oil-based, solvent-based, or UV curable inks. It can print on various substrates including coated cartons, plastics, glass, metals, and shrink wrap.
- Rugged Build: Features industrial-strength printhead construction and a durable 4.3″ full-color touchscreen designed for harsh production floors.
- Message Management: Uses Orion™ PC Software for message creation. Messages can be transferred via USB, Ethernet, wireless, or an optional Windows® tablet.
Operational Efficiency
The CoPilot 256 is “engineered for maximum uptime” through several high-efficiency components:
- Large Ink Volume: Uses a 500ml cartridge or bag system to reduce downtime for refills.
- Low Maintenance: The PZ-1000 ink for porous surfaces eliminates the need for auto-priming.
- Speed: Capable of printing up to 135 feet/min.
- Scalability: An unlimited number of systems can be connected via network and controlled from one central Orion™ PC.
- Specialized Systems: Offers an optional pigmented ink agitation system for printing on dark-colored objects.
Cost Benefits
- Low Cost of Ownership: Designed as an affordable solution with low maintenance requirements.
- Better Ink Utilization: The system is designed for better ink utilization than competitive products, particularly when using PZ-1000 ink.
- Maximizing ROI: By reducing downtime through its large ink volume and rugged design, the system helps maximize return on investment.
