DIKAI TTO D03S-Series

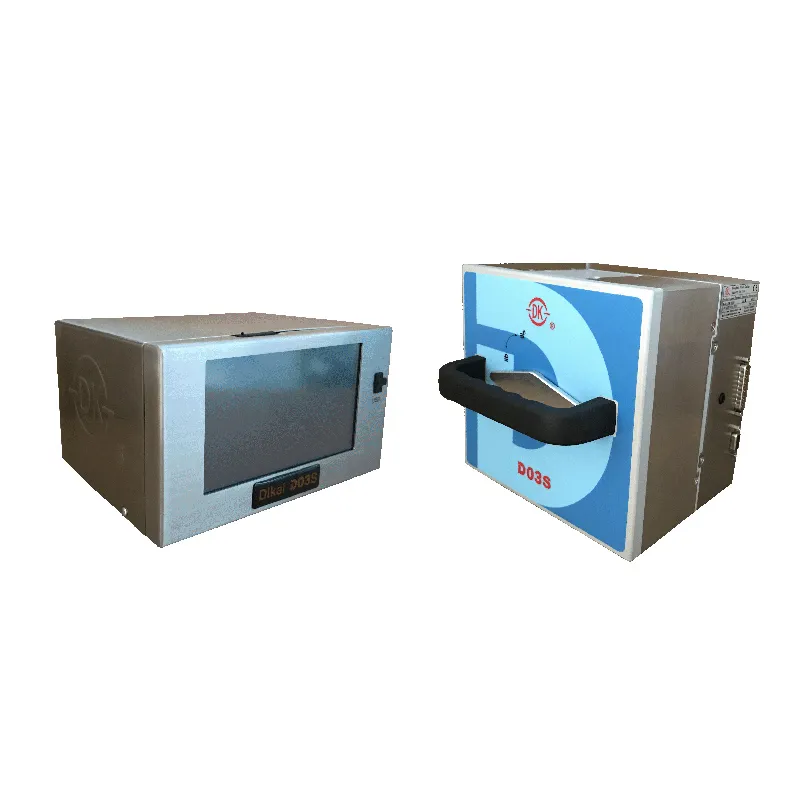

The D03S Thermal Transfer Overprinter (TTO), manufactured by Shanghai Dikai Coding Industry Co., Ltd., is designed as a smart, cost-effective coding solution for soft-packaging across various industries, including food, pharmacy, and finance.
The D03S is an “S Series” overprinter available in both Intermittent and Continuous print modes. It uses thermal transfer technology to print high-resolution text, graphics, and codes directly onto packaging materials.
- Print Resolution: 300 DPI (12 points/mm) for high-cosmetic quality.
- Print Area: 32mm × 60mm (Intermittent) or 32mm × 150mm (Continuous).
- Dimensions: The print unit is roughly 188mm × 190mm × 180mm and weighs 8.5kg.
Key Features & Design
- Two-Motor Control: This system allows for a highly precise printing gap of just 0.1mm.
- Advanced Connectivity: Includes USB, RS232, and an internet/network interface for convenient communication and data management.
- Versatile Printing: Capable of printing real-time dates, times, batch numbers, and variable barcodes/QR codes for anti-counterfeiting and tracking.
- Multiple Ribbon Options: Compatible with various ribbon types (Wax/Resin, Resin) and widths (22mm to 33mm) to meet specific adhesion requirements.
Operational Efficiency
- High-Speed Performance: The printing speed span ranges from 20mm/s to 670mm/s, allowing it to integrate seamlessly into fast material feeding lines.
- Production Continuity: Supports a super 650-meter ribbon, which reduces the frequency of replacements and minimizes production downtime.
- User-Friendly Interface: Features easy-to-learn editing software and a simple interface to streamline operations.
- High Frequency: Capable of a print frequency up to 300 times per minute.
Cost Benefits
- Ribbon Saving Modes: Includes several software modes to improve ribbon use efficiency, reducing waste.
- Reduced Errors: Optimized for material feeding lines to avoid miss-printing and shifting, which protects against material loss and customer complaints.
- High Precision: A minimum print gap of 0.5mm (and as small as 0.1mm with motor control) ensures every millimeter of the ribbon is utilized effectively.
- Cost-Effective Solution: Marketed as one of the world’s best cost-effective smart coding machines, designed to reduce costs in “every possible way”.
